Overview
Figure 1. Example Speed Test Results Page
The Speed Test Results page allows you to view and export speed test results for the selected company.
To manage speed test group schedules for the selected company, click the “Edit Schedule” button or navigate to the Speed Test Groups page.
Speed Tests
Speed Tests Search Form

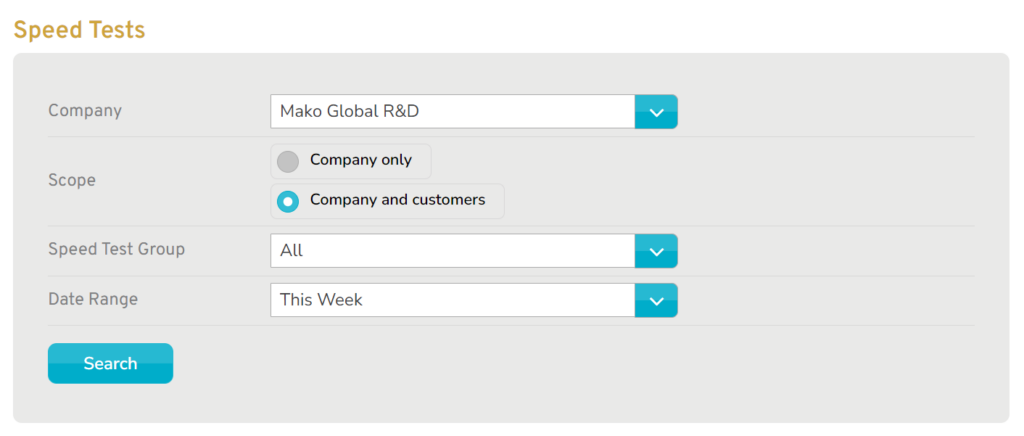

Figure 2. Example Speed Tests Search Form
Use the Speed Tests search form to find the speed test results that you want to view or export.
Form Fields
Company
Choose the Company whose speed test results you want to include.
Scope
Choose whether or not to include speed test results from child companies (customers) of the Company.
Speed Test Group
Choose the Speed Test Group whose speed test results you want to include.
This is determined by the Company selection. See the Speed Test Groups documentation.
Date Range
Choose a provided Date Range (“This Week”, “This Month”, “Last Month”, “Last Year”) or select “Custom Range” to set specific start and end dates.
Search Button
Click the “Search” button to view the Speed Test Results list that matches these constraints.
Speed Test Results List
Figure 3. Example Speed Test Results List
Filters
Use the filter form to refine the Speed Test Results list.
Data Type
Choose a data column to use for filtering.
Range
Specify a value range for matching results.
The unit options are determined by the Data Type selection.
Columns
- [VIEW] – view all speed test results for the site
- SITE – name of the site
- COMPANY – name of the company associated with the site
- MAKO – name of the Mako device to test at the site
- LAST TESTED – approximate duration since the most recent test
- INTERFACE – name of the Mako device interface to test
- AVG LATENCY – average latency value from the test results
- AVG JITTER – average jitter value from the test results
- AVG DOWNLOAD – average download bandwidth value from the test results
- AVG UPLOAD – average upload bandwidth value from the test results
Actions
View Speed Test Results for a Site
To view speed test results for a site, click its chart icon button. This will reload the page with data from the desired site. See the Site Speed Tests section below for details.
Export Speed Test Results
Figure 4. Example Speed Test Results Download Confirmation
Use the EXPORT links to download the filtered Speed Test Results list data. Click either “CSV” or “PDF” for your desired format, then confirm the file download.
Site Speed Tests
Site Speed Tests Search Form
Figure 5. Example Site Speed Tests Search Form
Use the Site Speed Tests search form to find the speed test results for this site that you want to view or export.
Form Fields
Date Range
Choose a provided Date Range (“This Week”, “This Month”, “Last Month”, “Last Year”) or select “Custom Range” to set specific start and end dates.
Display Chart Button
Click the “Display Chart” button to view the Speed Test Results chart and list that match these constraints.
Site Speed Test Results Chart

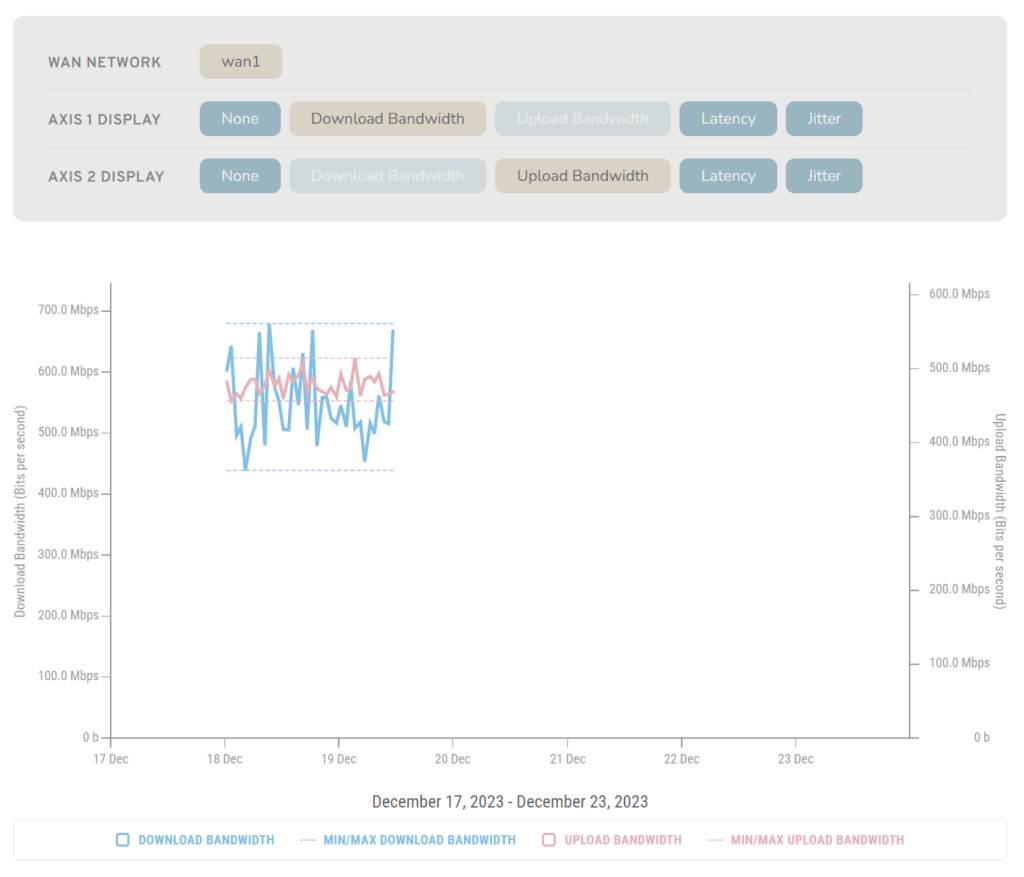

Figure 6. Example Site Speed Test Results Chart
When viewing speed test results for a site, the data from the list is visualized as the Site Speed Test Results chart.
Filters
Use the filter form to refine the Site Speed Test Results chart and list.
WAN NETWORK
Choose a WAN network for matching results.
AXIS 1 DISPLAY
Choose a dataset (“Download Bandwidth,” “Upload Bandwidth,” “Jitter,” or “Latency”) to display in the chart using AXIS 1, the y-axis along the left side.
AXIS 2 DISPLAY
Choose an optional second dataset to display in the chart using AXIS 2, the y-axis along the right side.
The x-axis is always time.
Site Speed Test Results List
Figure 7. Example Site Speed Test Results List
Filters
Use the filter form above the chart to refine the Site Speed Test Results list.
Columns
- SITE – name of the site
- TEST DATE – date and time of the test
- WAN – name of the Mako device interface tested
- LATENCY – latency value from the test results
- JITTER – jitter value from the test results
- DOWNLOAD – download bandwidth value from the test results
- UPLOAD – upload bandwidth value from the test results
Actions
Export Site Speed Test Results
Use the EXPORT links to download the filtered Site Speed Test Results list data. Click either “CSV” or “PDF” for your desired format, then confirm the file download.
Group Schedules for this Site
Figure 8. Example Speed Test Group Schedules
View all speed test group schedules for this site in the Group Schedules for this Site list.
Columns
- SPEED TEST GROUP – name of group
- COMPANY – company assigned to group
- SITE QTY – number of sites in group
- WAN TEST FREQUENCY – how often wired WAN networks are tested
- CELL TEST FREQUENCY – how often cellular WAN networks are tested
Actions
Manage Speed Test Groups
Click a speed test group’s arrow icon button to manage its group schedules using the Speed Test Groups page.
